A Sky Pup Construction Project
Building the MachNone
5/21/2002 Resaw the hardwood bearing blocks in order to accurately place bolt holes.
5/28/2002 Cut bevel on hardwood wing bearing blocks.

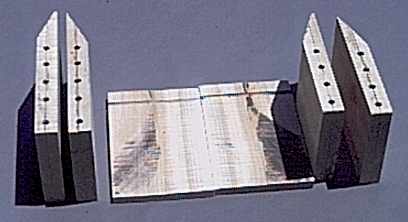

Completed bearing blocks with rejects.

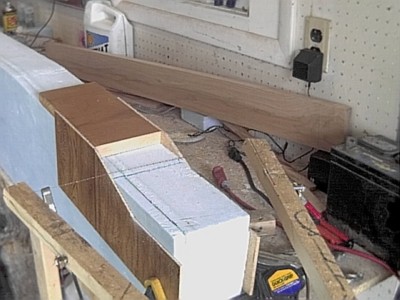

6/1/2002 Cutting the pockets for the bearing blocks.

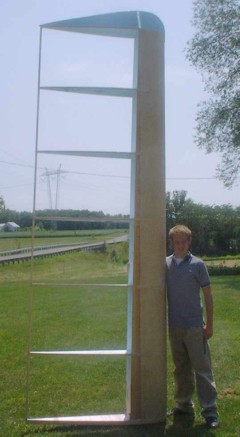

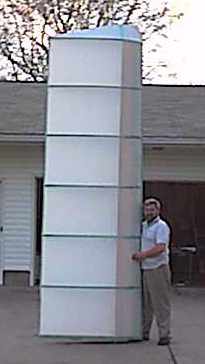

Three pictures above 4/29/03. My daughter Elizabeth models the Skypup.

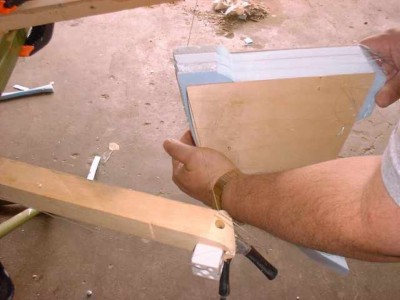

Cutting a block of nose ribs.

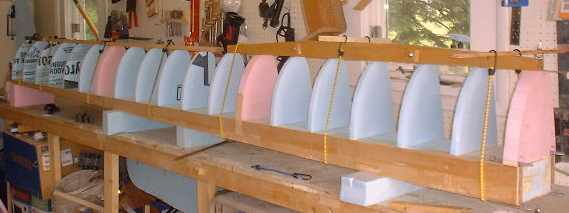

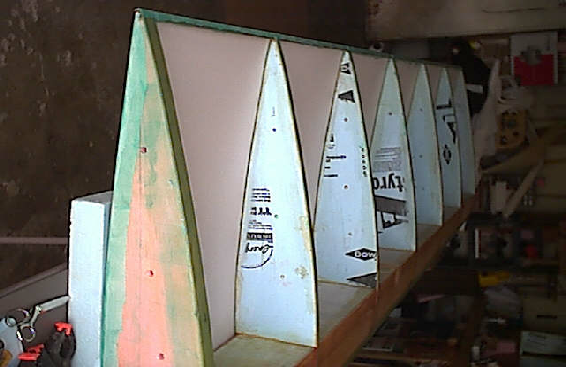

6/14/03 Spar structure completed and nose ribs are being glued on. (Nose ribs completed 6/20/03)

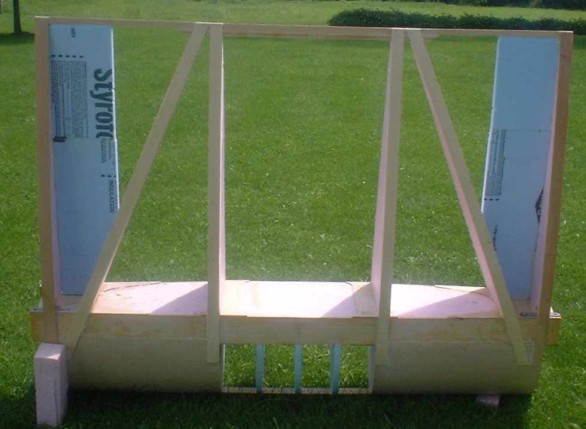

Center section of wing sheeted (Completed 7/3/03)

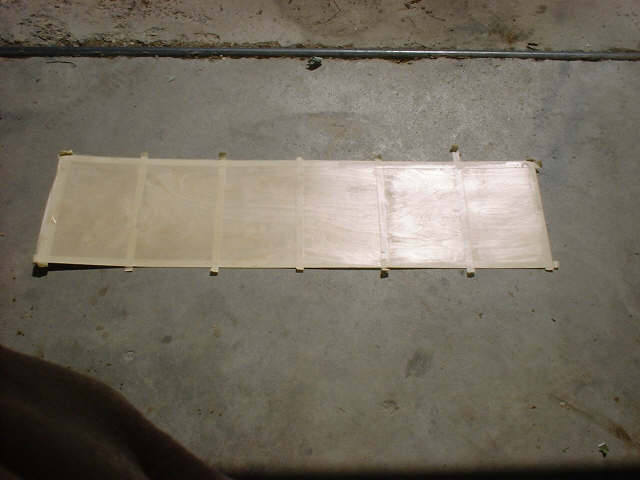

Wing skin with interior areas to be glued masked and the remainder varnished.

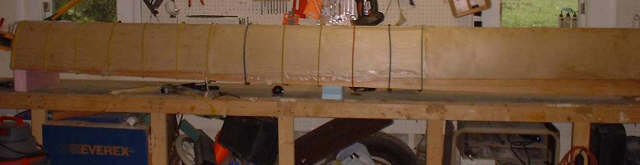

Sheeting of wing d-tube (Completed 7/21/03)

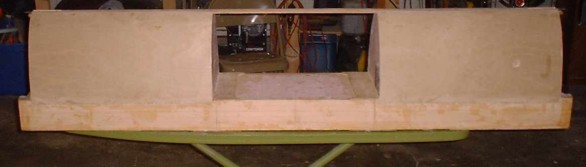

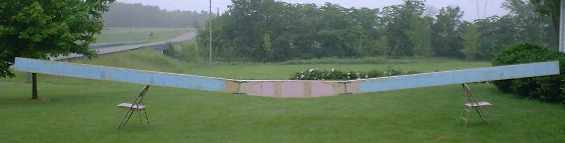

Center Section of wing complete, ready to be mated to fuselage. (8/3/03)

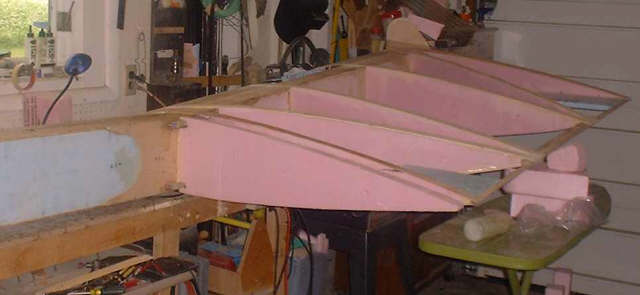

Center section matched to first outboard rib on left wing. (8/3/03

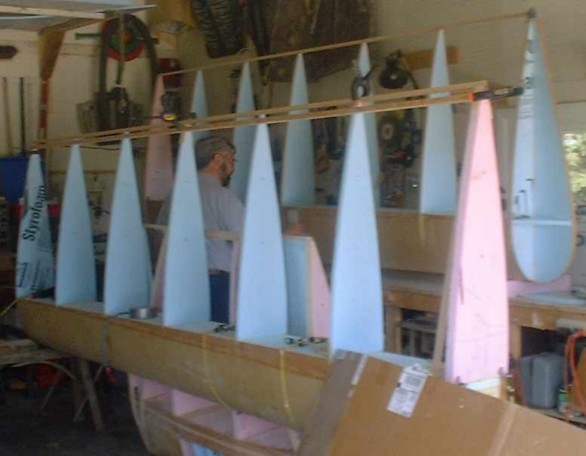

Gluing up aft ribs and trailing edges.
(8/23/03) Progress report
I finished the structure of the left wing today! The right wing lacks rip caps and tip rib but should soon be finished. I started covering the underside of the fuse in anticipation of the installation of the wing center section, when I expect it will not be so easy to flip upside down. I think I'll have the airframe structure complete before the leaves fall. That will give me the winter to cover, install engine and control system. Think spring:-)
Covering begun!

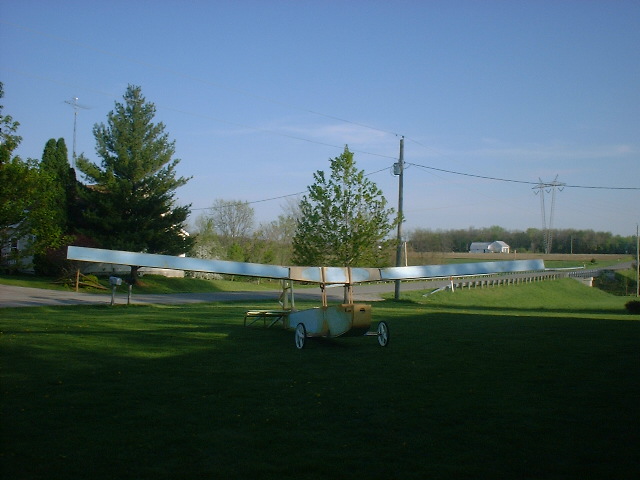

5/9/2004 Both wings are covered and have on one coat of latex paint. Vstab, rudder and hstab are covered and waiting for paint. I've decided that I will probably pull off the less-than-perfect fabric I had originally put on the fuselage and redo it. The 3M Fastbond 30NF contact cement works great. Check out the link for a step-by-step description of the covering process.
