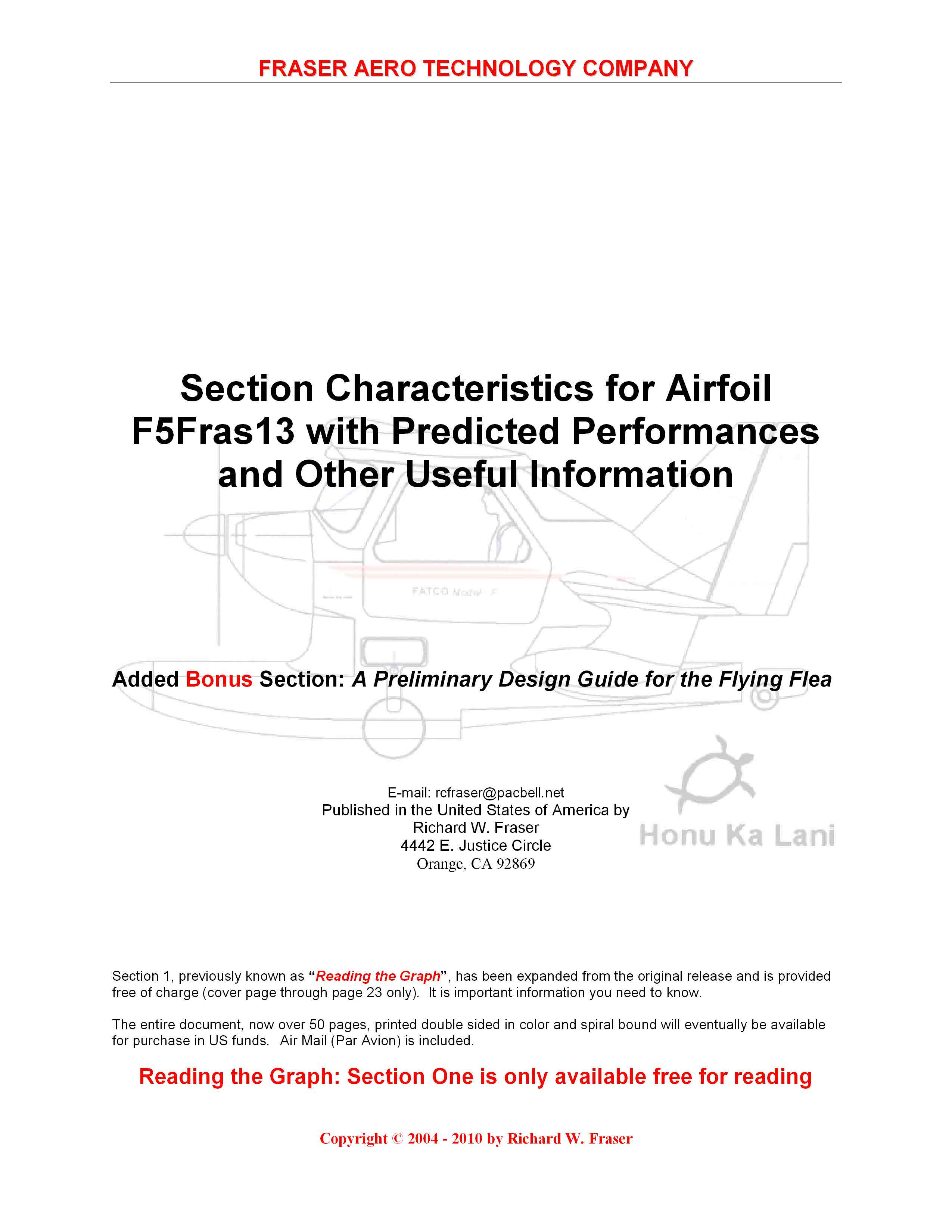

Cover Page

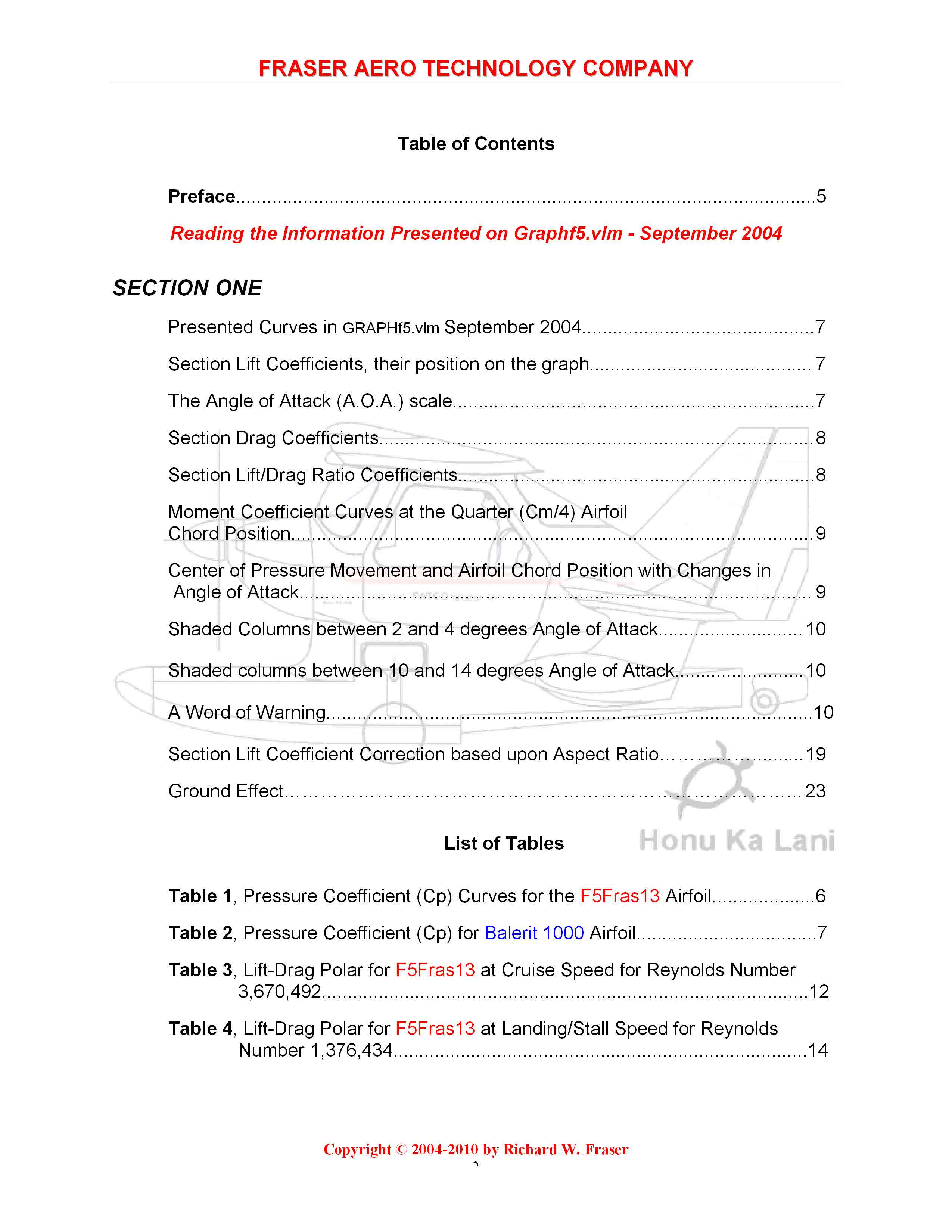

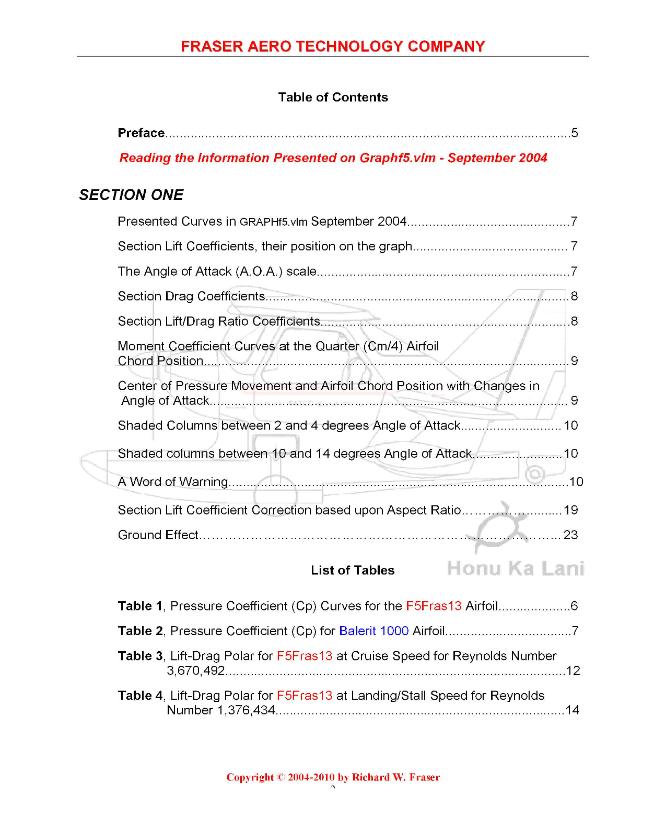

Page 1
Page 2
Page 3
| There are 24 pages to this document, including the cover. This is a long page to scroll |
Page 4
| Click on each page to enlarge |

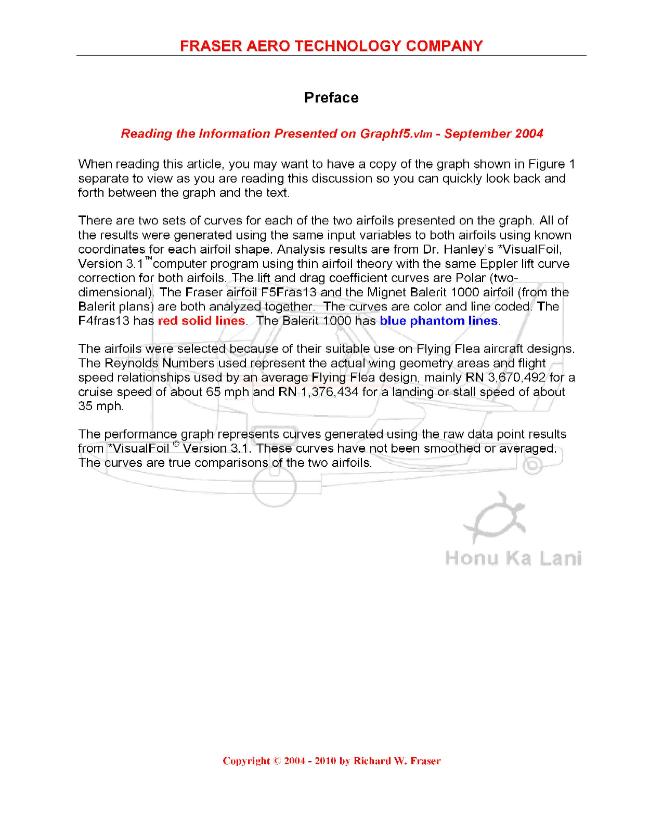

Page 5
Page 6
Page 7
|
| Each page will open into a new browser window. Delete it and you will return back here |
Page 8
Page 9

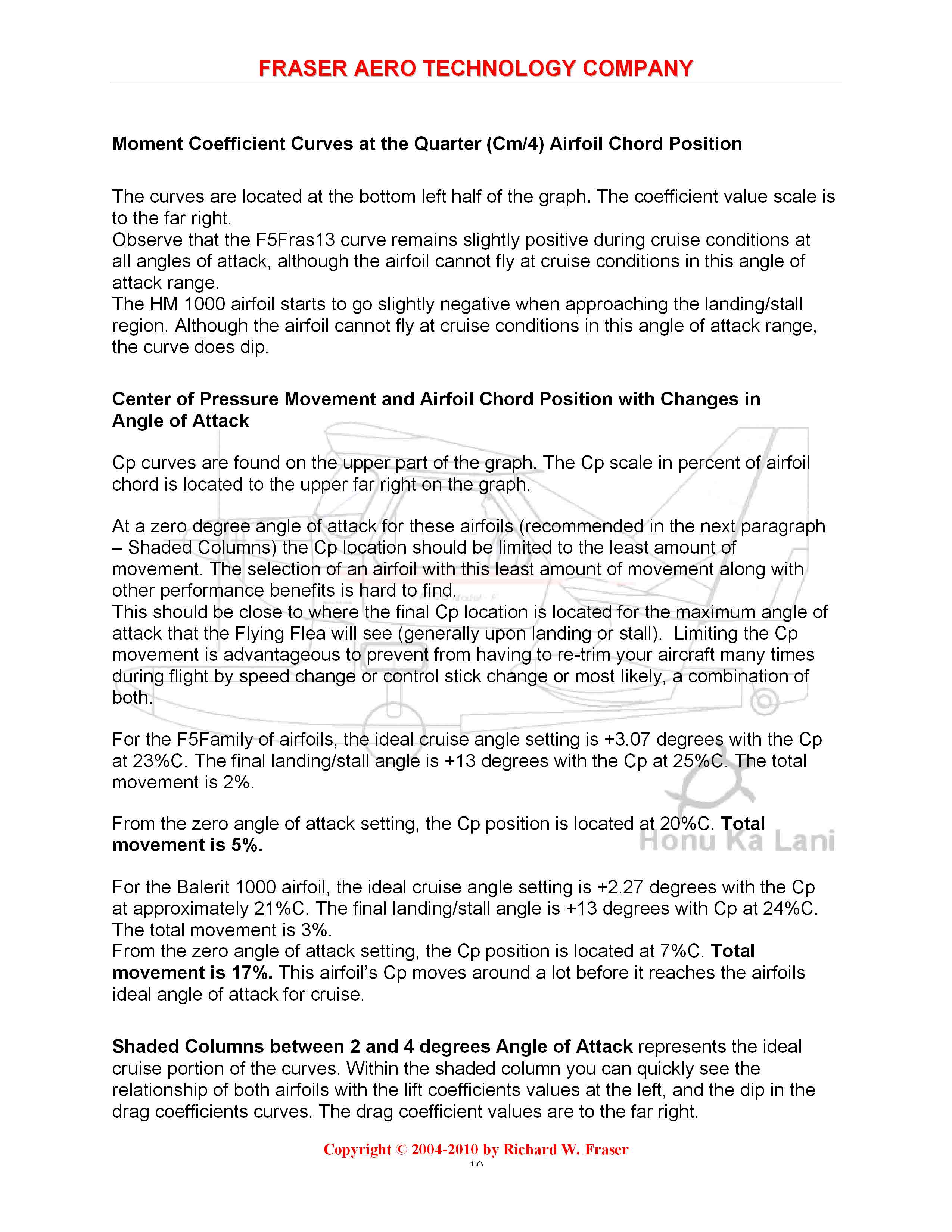

Page 10
Page 11

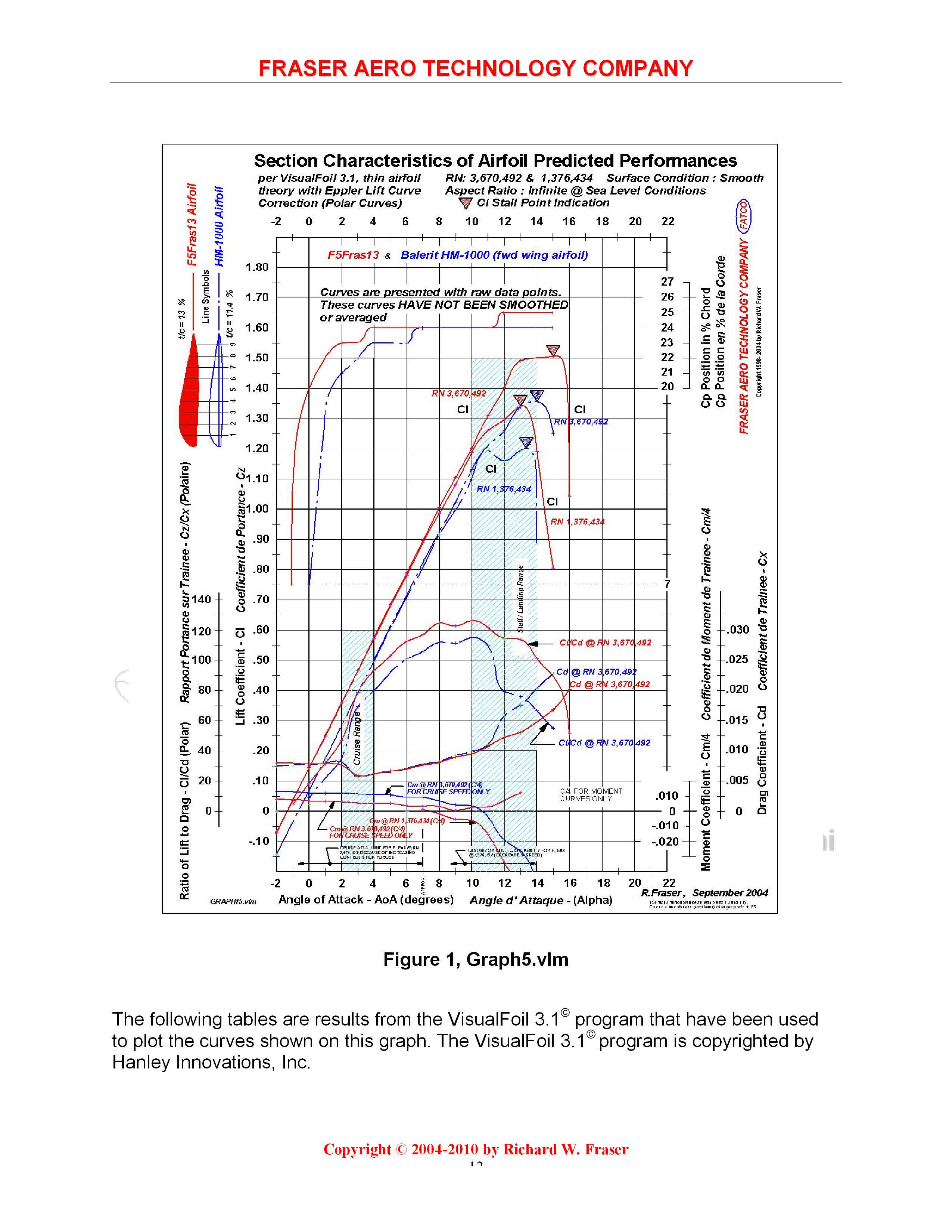

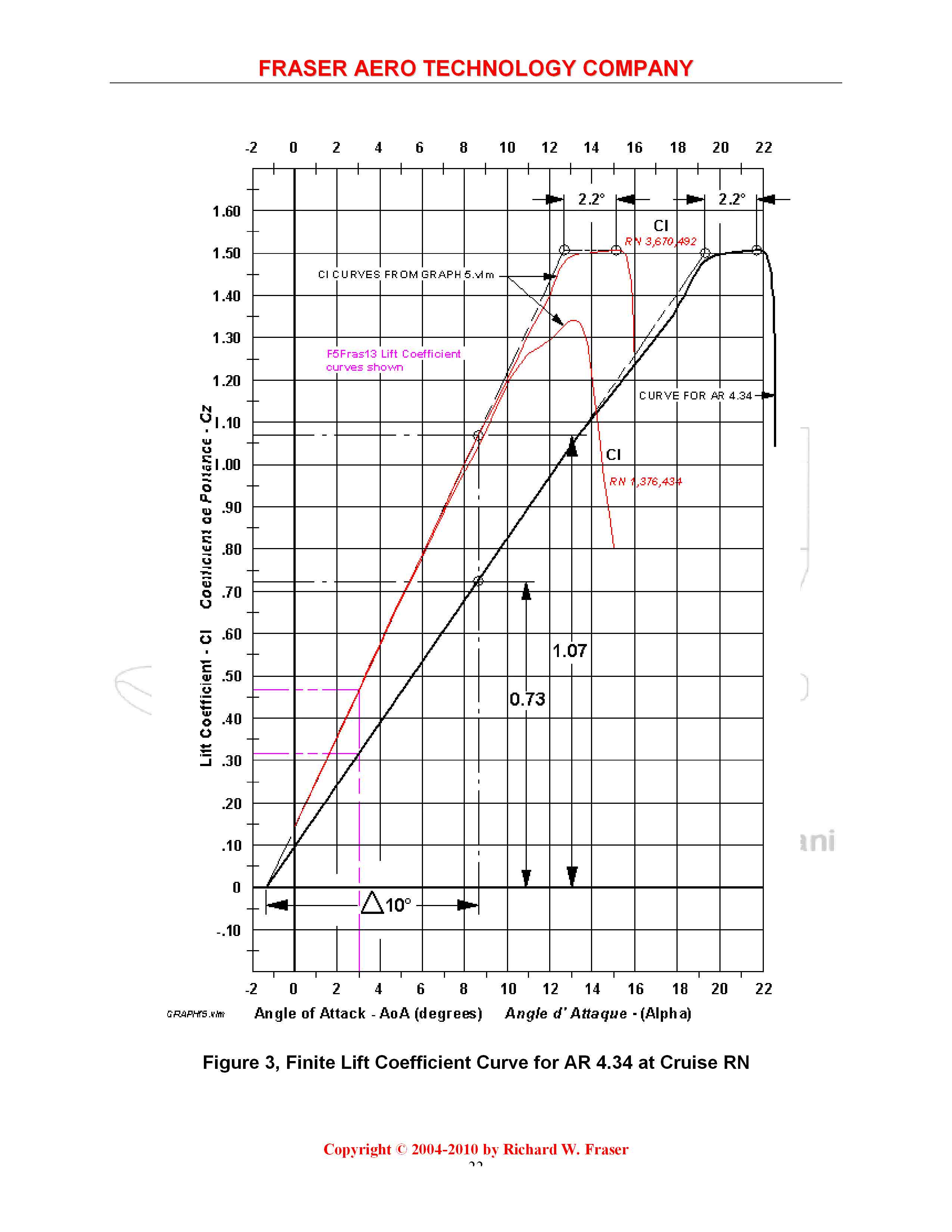

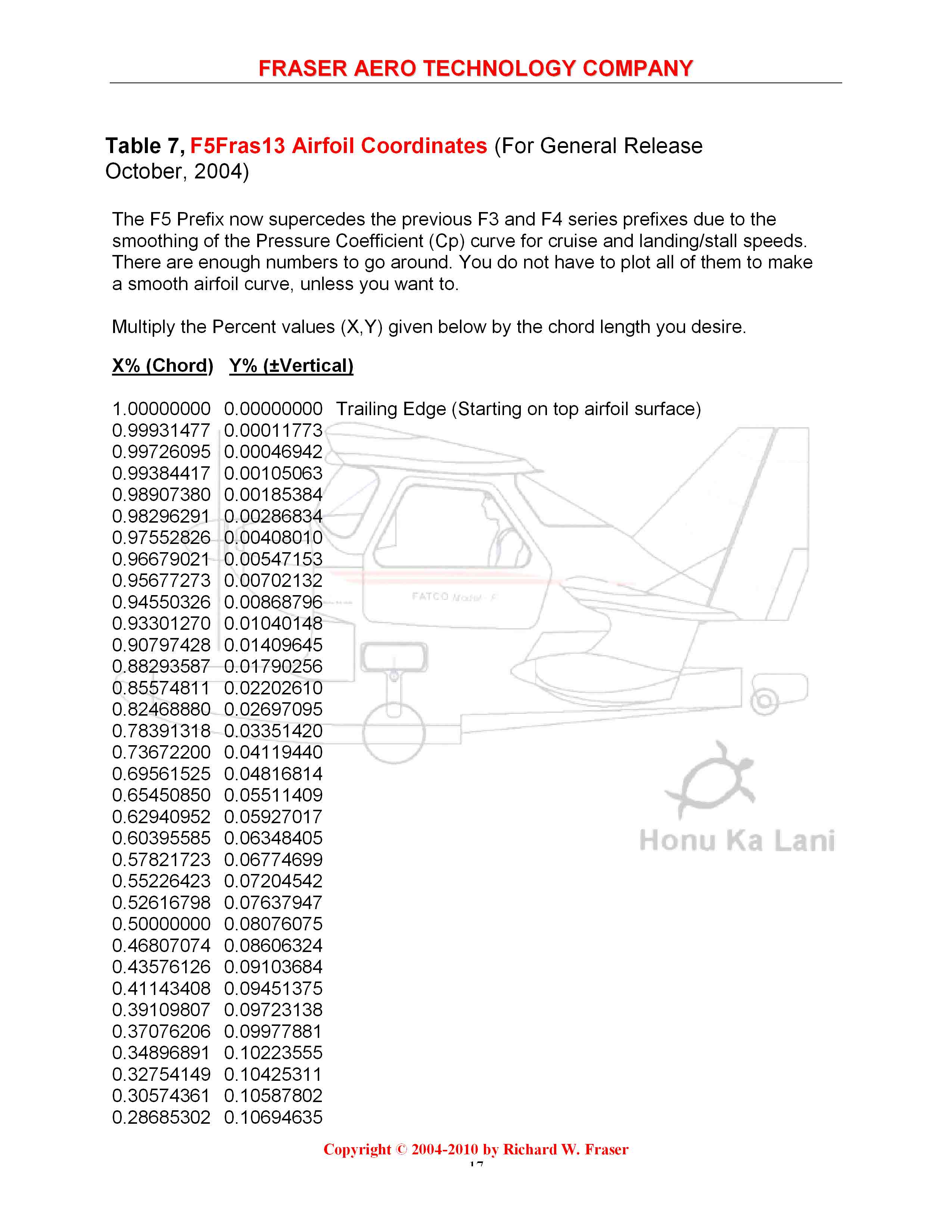

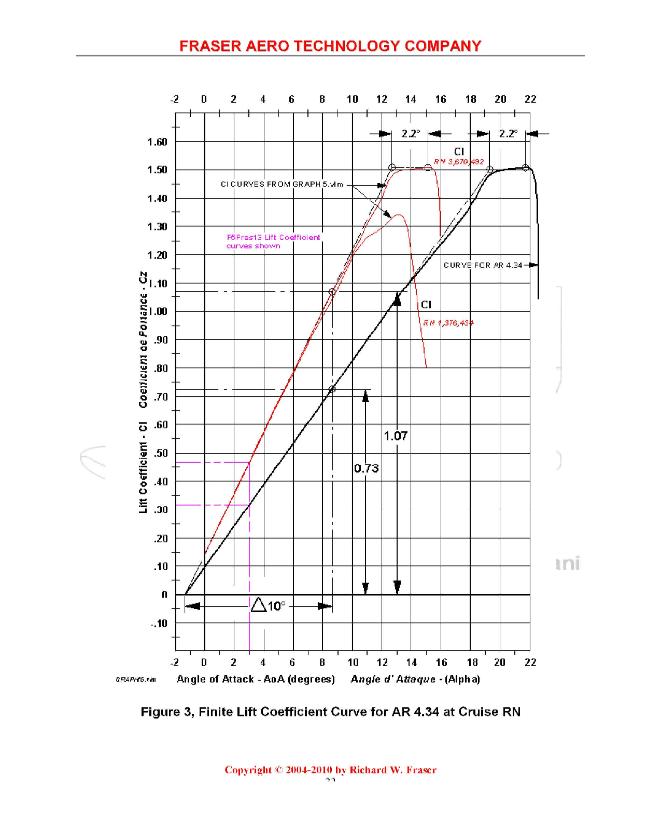

| The Graph in Figure 1 shown above is the same graph shown with the coordinates for the F5Fras13 and F5Fras15 airfoils shown on another page in this website. |
| Click on each page to enlarge |
|
| Click on each page to enlarge |
|
Page 12

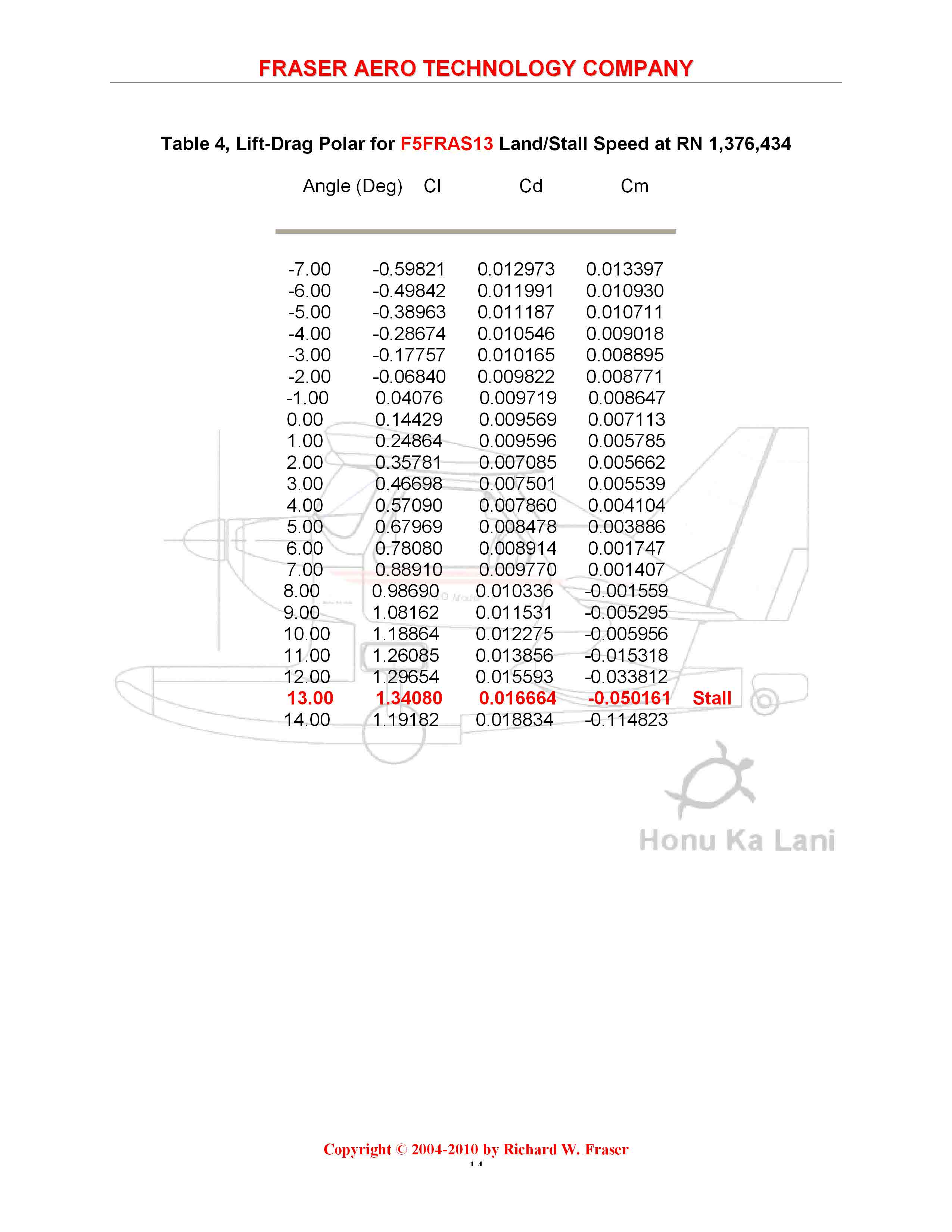

Page 13
Page 14
Page 15
Page 16
Page 17
Page 18
Page 19
| Click on each page to enlarge |
|
Page 20

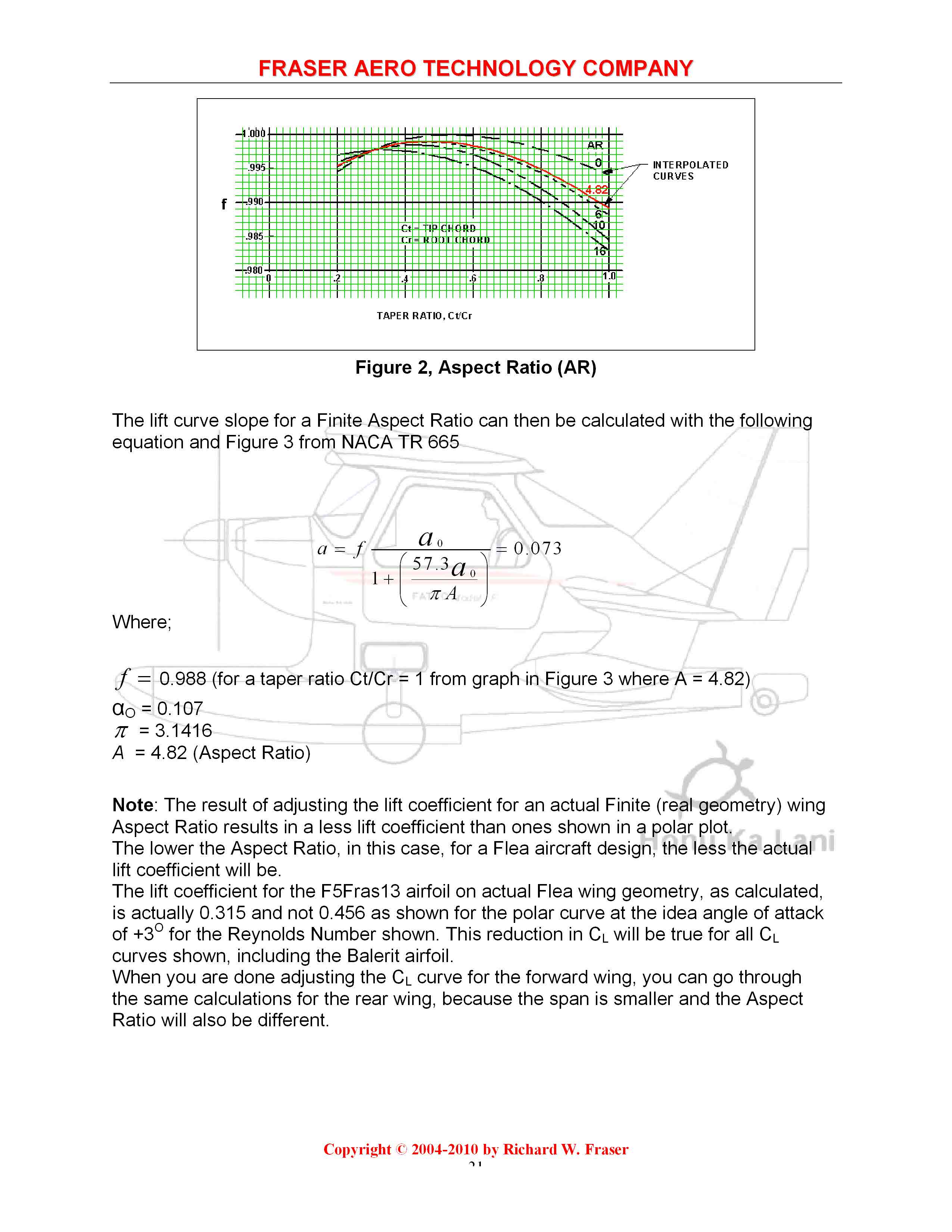

Page 21
Page 22
Page 23
| End of Section One - for free reading |
| Copyright © 2000 - 2014 by Richard W. Fraser All Rights Reserved |
| Click on the red airfoil to go to the F5Fras13 and 15 Coordinates page |
FRASER AERO TECHNOLOGY COMPANY |
Reading the Graph
